High Reliability Flange NTC Temperature Probe Sensor For Fluid Flowmeter

Name: High Reliability Flange NTC Temperature Probe Sensor For Fluid Flowmeter
Brand: Hefei Minsing
Price: 1 USD

China High Reliability Flange NTC Temperature Probe Sensor For Fluid Flowmeter wholesale

Brand Name : Hefei Minsing

Model Number : MFP-4

Certification : REACH ,ROHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 6 Million Pieces Per Year

Delivery Time : 7-10 work days

Packaging Details : Bulk

Head Material : PPT Tube(Customizable)

Lead Wire : PVC , XLPE, ...

Head Size : Φ7×23.3mm (Customizable)

Wire Length : Customized To Your Demands

R25℃ : 0.5KΩ-2000KΩ

B Value : 3000K-4500K

R Tolerance : 1%,2%,3%,5%,10%

B Tolerance : 1%, 2%,3%,5%

Contact Now

For Fluid Flowmeter Usuage , Flange Temperature Probe , Customized Available , Long Service Life , High Reliability

Product Feature:

Temperature sensor design and production

Fix easy / Nice looking

Application:

Dryer / Water heater / Sanitary ware /Closestool / Fired Machine / Microwave Oven / Auto air-conditioner

Specification Explain:

SJ MF P -4 -3950 -502 F

① ② ③ ④ ⑤ ⑥ ⑦

① Minsing Co.,Ltd

② NTC thermistor

③ Encapsulation probe

P: Anomalous probe encapsulated

④ Anomalous probe types:

1. Copper crimp type, 2. Surface testing type, 3 .Bullet type,

4. Flange type, 5 .Cap shell type, 6. Screw thread type, 7. Clamp type

⑤ B value(B 25/50℃) Example: 3950:B 25/50℃: 3950

⑥ Standard resistance value at 25℃(R25℃):

Example:502:R25℃ 5KΩ

⑦ R25℃ interchangeability precision:

F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)

Specification:

Specification	R25℃ (KΩ)	B25/50℃ (K)	Disspation constant	Thermal time constant	Operating temp. range
SJMF□-□280-301□	0.3	2800	In still air 2.1~15mW/℃	ln still air 25~65s	-40～+150℃
SJMF□-□338/350-202□	2	3380/3500
SJMF□-□327/338-502□	5	3270/3380
SJMF□-□327/338-103□	10	3270/3380
SJMF□-□347/395-103□	10	3470/3950
SJMF□-□395-203□	20	3950
SJMF□-□395/399-473□	47	3950/3990
SJMF□-□395/399-503□	50	3950/3990
SJMF□-□395/399-104□	100	3950/3990
SJMF□-□420/425-204□	200	4200/4250
SJMF□-□440-474□	470	4400
SJMF□-□445/453-145□	1400	4450/4530

The sizes above are for reference only. Different encapsulation and electrical parameter can be custom made as requirement.

More detailed data for reference,please visit our website: www.Minsing.com.cn

Product Tags:

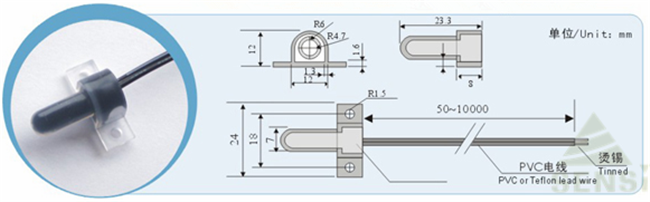

High Reliability Flange NTC Temperature Probe Sensor For Fluid Flowmeter Images
