Glass Fiber Sleeves White Nylon Temperature Ring Probe

Name: Glass Fiber Sleeves White Nylon Temperature Ring Probe
Brand: Hefei Minsing
Price: 1 USD

China Glass Fiber Sleeves White Nylon Temperature Ring Probe wholesale

Brand Name : Hefei Minsing

Model Number : MFP-2

Certification : IATF16949, UL, REACH ,ROHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 6 Million Pieces Per Year

Delivery Time : 7-10 work days

Packaging Details : Bulk

Shell : Nylon Ring Lug

Lead Wire : PVC , XLPE, Silicone,...

Head Size : Φ4×26mm (Customizable)

Wire Length : Customized To Your Demands

R25℃ : 0.5KΩ-2000KΩ

B Value : 3000K-4500K

R Tolerance : 1%,2%,3%,5%

B Tolerance : 1%, 2%,3%,5%

Contact Now

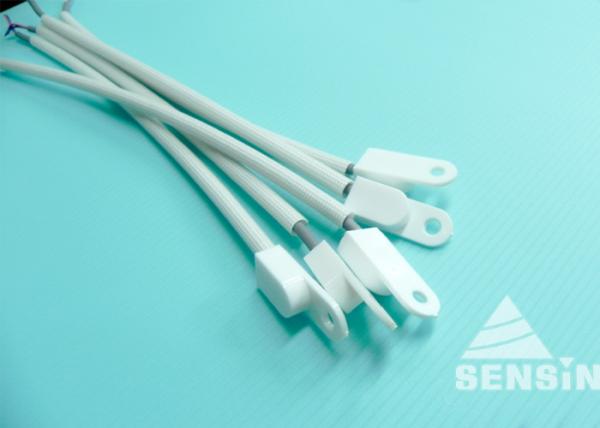

White Nylon Material Temperature Ring Probe, with Glass Fiber Sleeves,Surface Mountable and Various Mounting Options

Application:

Power Supply / Electrical motor / Radiator

Technical Data:

Items	Product Parameters
Minsing component	NTC Thermistor various R and B value on request
Probe/ Shell materials	Nylon /ABS Ring lug
Wire materials	Gauge AWG28~AWG20 PVC, XLPE, Silicone, ,etc.
Operating temp. range	-40°C to +120°C various
Thermal time constant	25~65s ln still air
Disspation factor	2.1~15mW/℃ ln still air
Long-term stability	Drift ≤ 3% after 1000h heat and cold store (120°C / -40°C)
Voltage withstanding	1800VAC
Insulation resistance	≥100MΩ 500VDC

Glass Fiber Sleeves White Nylon Temperature Ring Probe

Our Services:
1. Good quality is assured by advanced manufacturing technique.
2. All products will be checked by our quality-control department.
3. Customized design. OEM&ODM is accepted.

Glass Fiber Sleeves White Nylon Temperature Ring Probe

FAQ:

1.Can I visit your factory?

We have over 7800 square meters of workspace and sincerely welcome your business visit.

2.Do you accept OEM or ODM?

Of course.

3.How’ your production capacity? How long is the lead time ?

Monthly output 5000,000 piece . It usually take us 5-10 days to finish the goods.

4.What’s your main payment term?

T/T ,LC ,D/P.

5.Any quality guarantee or after-sales service?

If any quality complaint , we will give out solution within 5 days.

6.Can sample fee be returned back to me ?

Sample amount can be deducted from your bulk order payment when order quantity is over 1000 pieces at the first time.

7.How many days it takes to finish the samples?

Usually 2-5 work days .
